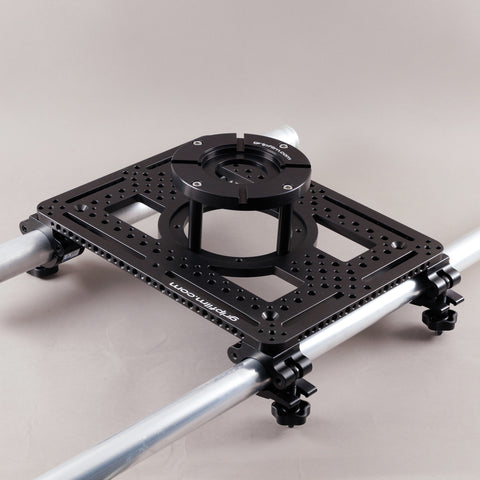

MITCHELL CHEESE PLATE

MITCHELL CHEESE PLATE

FEATURES:

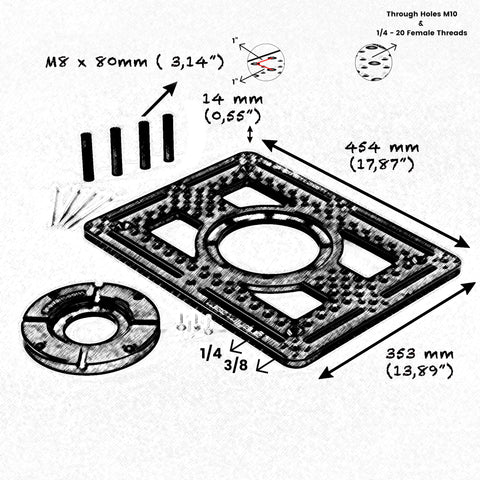

☑ Base measurements 454 x 353 x 14mm ( 17,87" x 13,89" x 0,55" )
☑ Mitchell base
☑ 2,4 Inch 3/8 hole spacing (compatible bottom dovetail plate)
☑ Compatible with SKU: GFMTL-B150

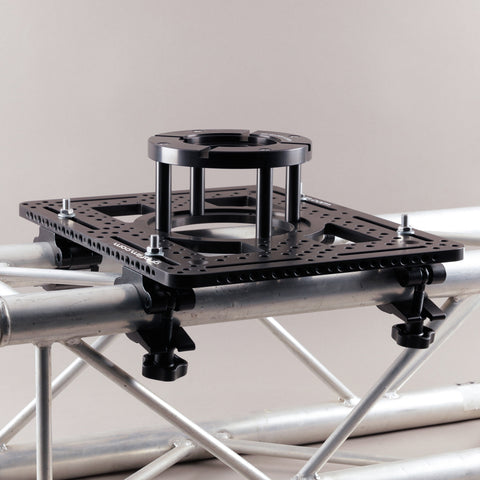

☑ M8 x 80mm (3,14") Mitchell base Height extension
☑ 4 Grooves for key way
☑ 3/8 - 20 Female threads on profile ( Blind holes )
☑ 1/4 - 20 Female threads on profile ( Blind holes )
☑ 3/8 & M10 countersunk screw
☑ M10 Through holes
☑ High strength aluminium alloy
☑ Black anodized
☑ Heavy loads
☑ Total Weight: 4,20Kg

INCLUDES:

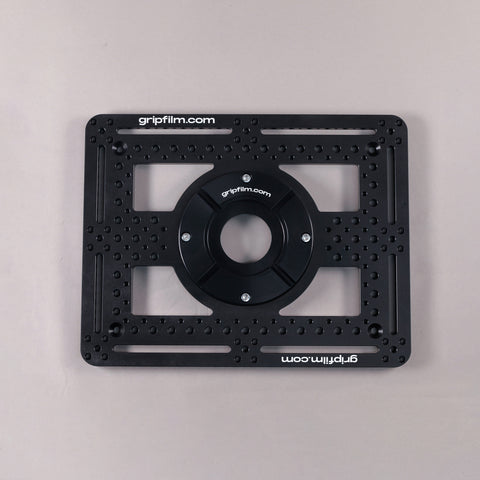

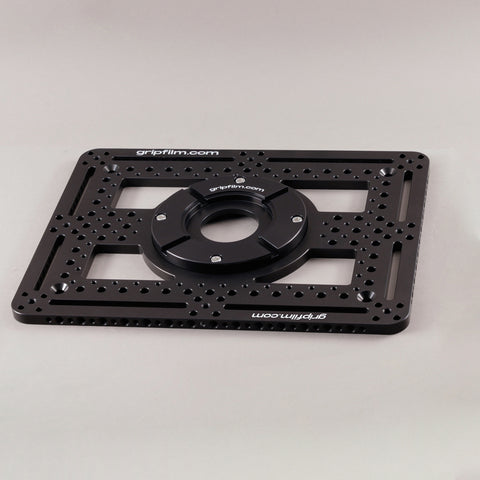

☑ 1 Piece mitchell cheese plate 454 x 353 x 14mm (17,87" x 13,89" x 0,55"
☑ 1 Piece black mitchell base
☑ 4 Pieces M8 Mitchell base extension 18 x 80mm  (3/4 x 3" 3/4)
☑ 4 Pieces M8 x 18mm Stainless steel allen bolt
☑ 4 Pieces M8 x 100mm Stainless steel allen bolt
